Connect to a BigQuery instance

To access an Google BigQuery project, Hackolade currently supports access through a Service Account associated with your Google Could project.  Credentials are loaded from a file created in the Google IAM & Admin console by your administrator.

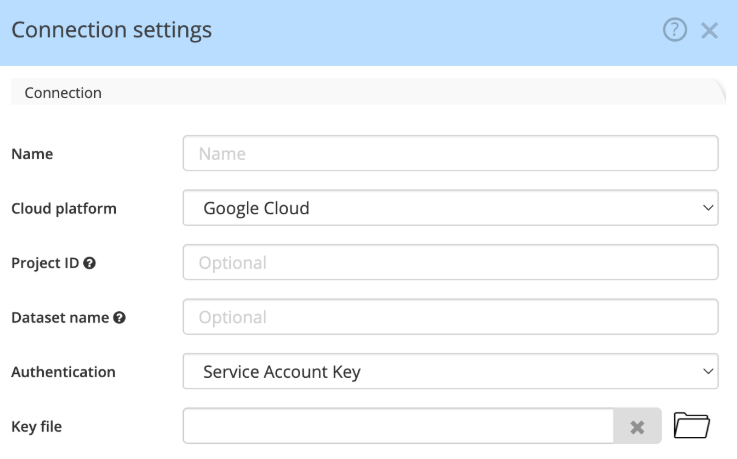

Give a meaningful name to the connection, optionally provide a specific project id, and reference the path and name of the key file provided by your administrator.








The Hackolade process for reverse-engineering of Google BigQuery datasets includes the execution of SQL statements to discover datasets, tables and views, columns and their data types.



Instructions to create a Service Account key file

Here are the steps to follow:

1) go to the IAM console, and choose Service Accounts in the menu

2) select an existing project, and press the button + Create a Service Account

3) provide the service account details, and create

4) grant the following service account access to the project:

    - BigQuery Data Viewer: in order to be able to perform reverse-engineering

and

    - BigQuery Data Editor: in order to be able to forward-engineer (apply SQL script to instance)

    - BigQuery Job User: in order to be able to forward-engineer (apply SQL script to instance)




then save the role

5) select the action Manage Keys for the service account:




and create a new key with JSON type.  The .json file gets downloaded in the browser.



This is the file to be referenced in the connection settings dialog.
